Face Emotion Detection

Piotr Parkitny | pparkitny@ischool.berkeley.edu

Table of Contents

• Problem Statement
• Dataset
• Project Solution
• Cloud Training
• Edge Inference
• Dashboard
• Results
• Future Work

Problem Statement

Detecting emotion from an image has many applications, Some examples of automatically analyzing video to determine how people reacted to certain events:

• Zoom transcript along with facial emotion
• Focus groups/comedy show: timing detected emotion with the treatment
• Determine how happy a film/TV show is based on the actor’s emotions.
• Pick the best pictures to showcase from your photo album

A full presentation is available here –> Presentation

Dataset

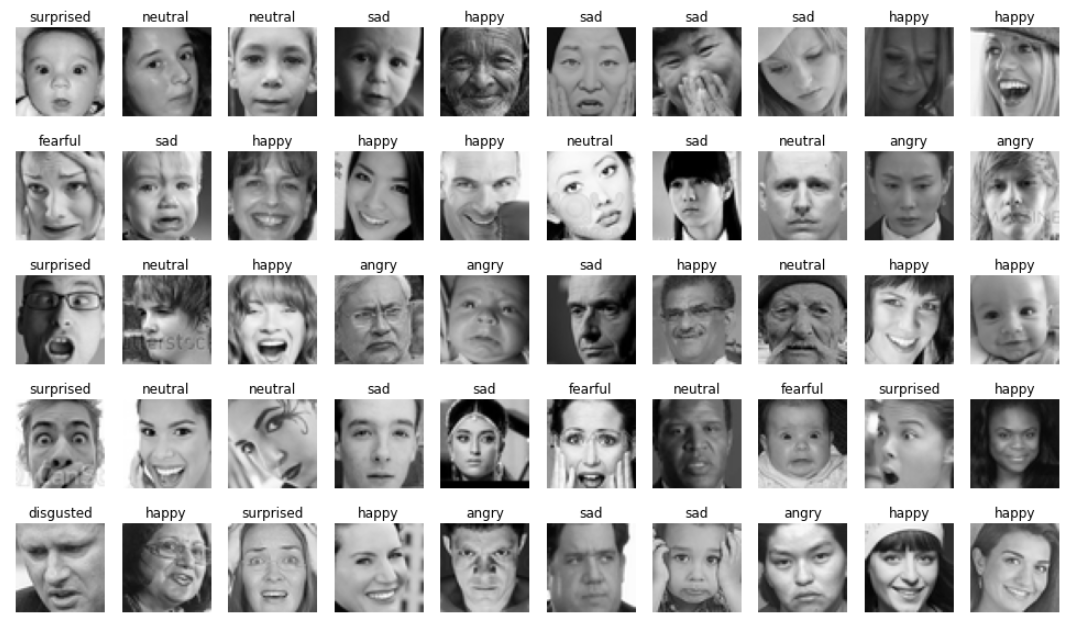

The dataset is composed of human faces labeled according to the displayed emotion.

• FER - 2013
• 36k examples of 48x48 greyscale images of faces
• 140 MB
• Emotions: happy, sad, fearful, angry, neutral, surprised, and disgusted

Project Solution

The diagram below describes the overall solution.
The solution is broken down into Cloud and Edge components.

Cloud Components

Cloud is composed of Amazon AWS and Google GCP that are used for training, storing results, and displaying real-time results from the Edge device

1. Training
   The model that is used on Amazon AWS for training on the dataset –> Model
2. BigQuery
   The Google GCP-hosted database that stores real-time input data from the Edge device.
3. DataStudio
   Datastudio dashboard hosted on Google GCP for displaying data from BigQuery

Edge Device

Jetson is used as the edge device for running the model

1. MQTT Broker –> edge-MQTT-broker. The Edge MQTT broker stores the detected facial emotion.
2. MQTT Forwarder –> edge-MQTT-forwarder. The Edge MQTT Forwarder subscribes to the local MQTT Broker and publishes to the cloud DB.
3. Face Detector –> edge-emotion-detector. The Edge Face Detector detects the facial emotion and publishes it to the local MQTT Broker.

Cloud Training

---

Training is done on Amazon AWS EC2 using g4dn.xlarge instance. Below are the steps required to set up training

• Start Amazon VM and SSH into the box

ssh -i us-east-1-jetson.pem -L 7777:127.0.0.1:7777 ubuntu@ec2-34-238-51-68.compute-1.amazonaws.com

Run it on Kaggle

Start Docker and JupyterLab

• After starting docker open the notebook and run file –> cloud-train.
• At each epoch the model is saved to S3 bucket so it can be pulled down by the edge device.

docker run --privileged --shm-size=1g --ulimit memlock=-1 --ipc=host --net=host --gpus all -it -v $(pwd):/workspace nvcr.io/nvidia/pytorch:21.06-py3
jupyter-lab --ip=0.0.0.0 --port 7777 --allow-root --no-browser --NotebookApp.token=''

Weights & Biases

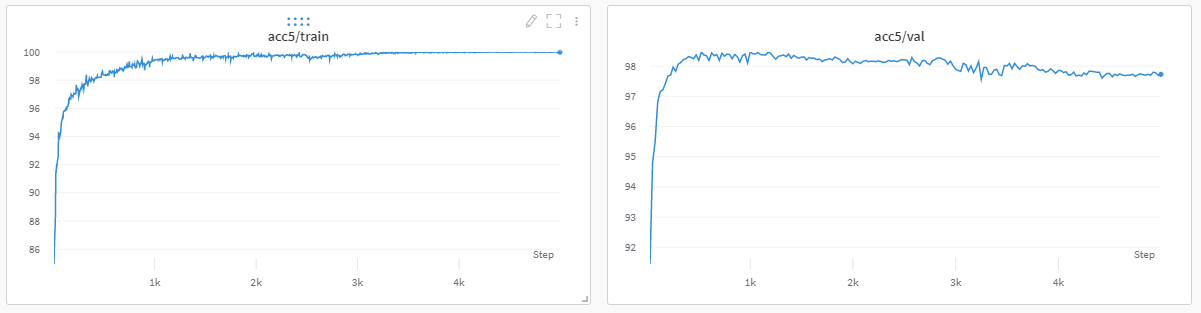

Weights & Biases is used for tracking the progress of the training along with keeping all the results saved.

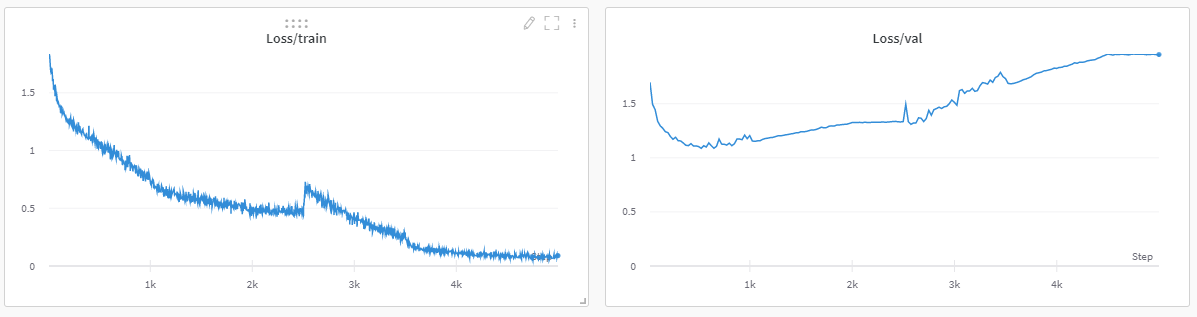

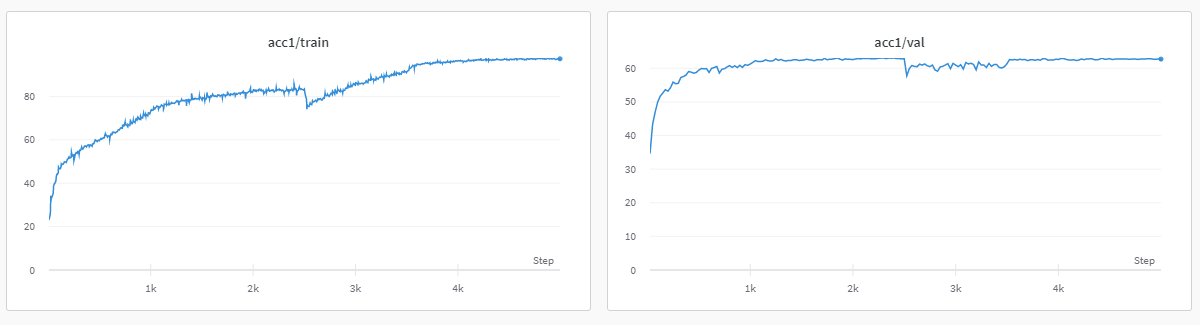

Below are an example of the generated graphs.

Edge Inference

---

Running on the edge is done on the Jetson, the following code will start the process.

Start Broker

cd edge-MQTT-broker
./start.sh

Start Forwarder

cd edge-MQTT-forwarder
./start.sh

Start Face Emotion Detector

sudo xrandr --fb 1900x1000
xhost +
cd edge-face-detect
start.sh
python3 emotion_detect.py

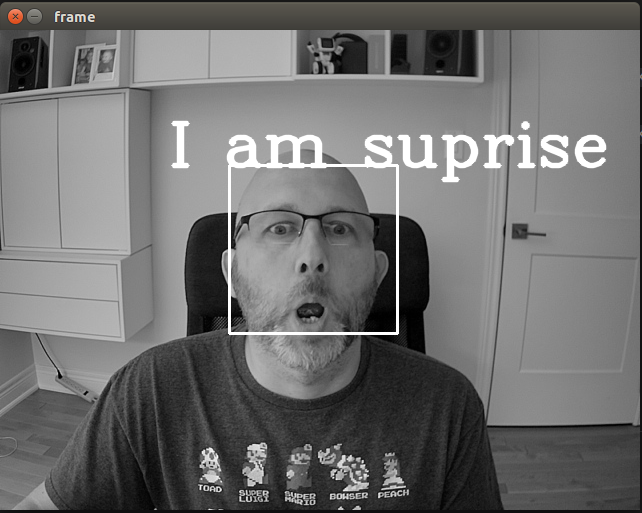

Below are some images that are based on running on the Jetson. No noticeable lag can be observed and the overall performance is very good.

Dashboard

---

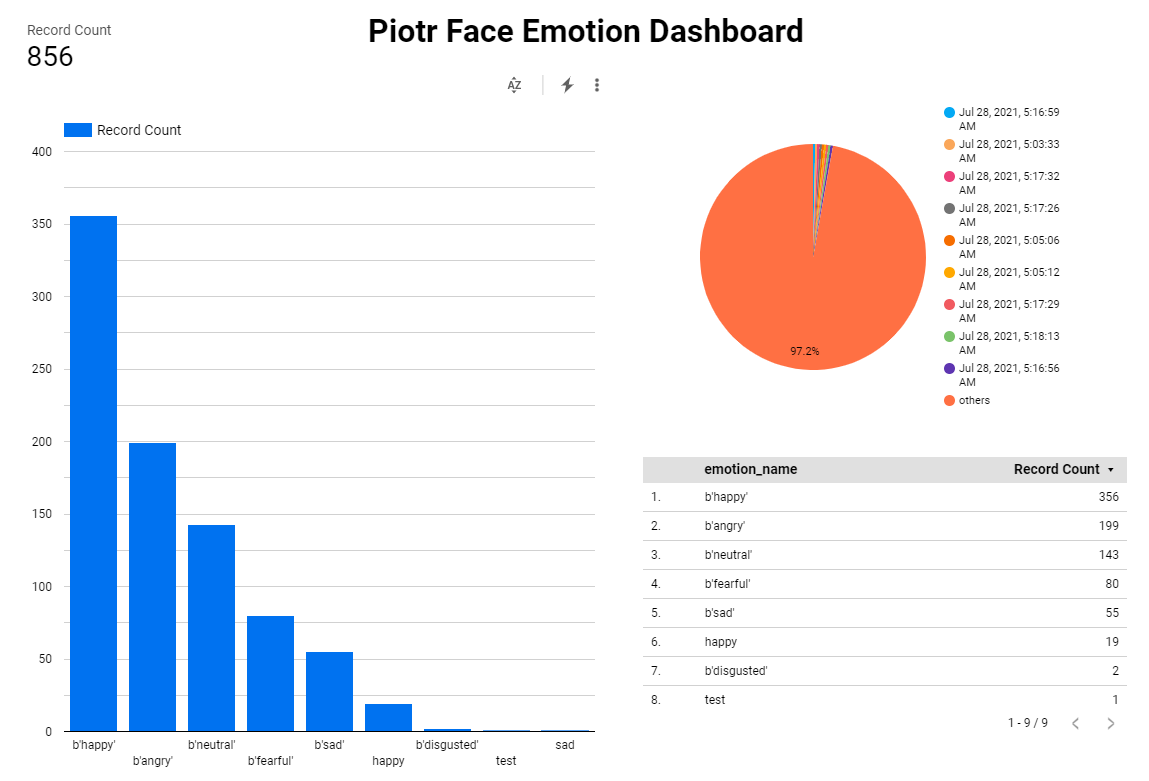

The dashboard pulls the data from bigquery that is used by MQTT Fowarder to store emotions along with a timestamp.

Results

---

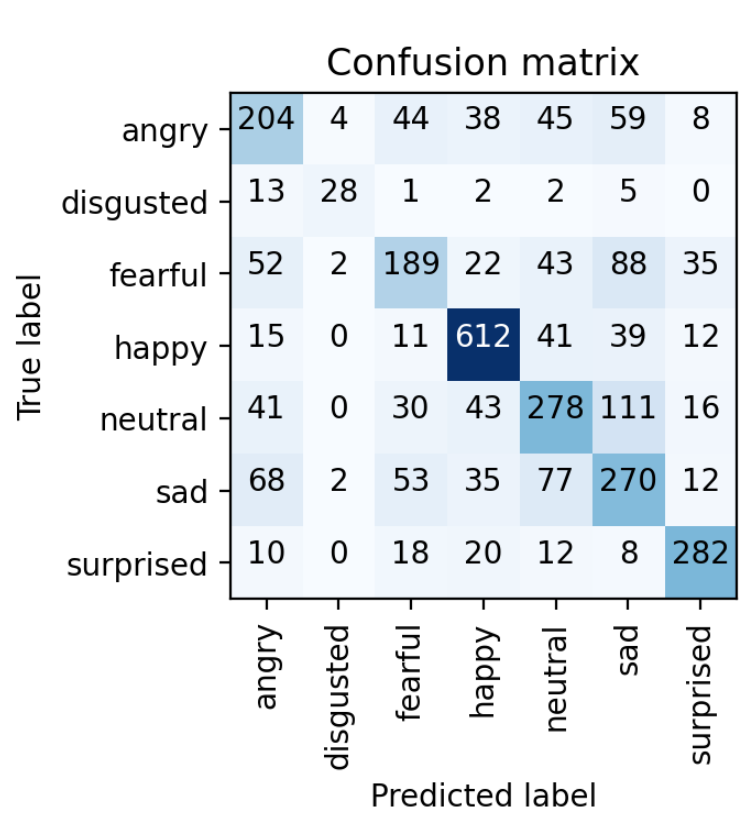

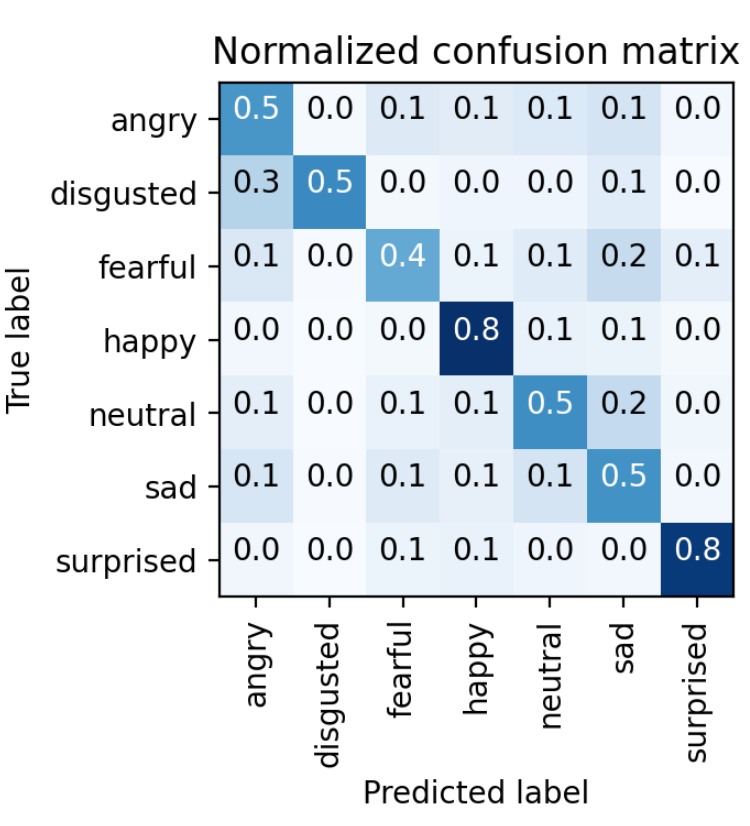

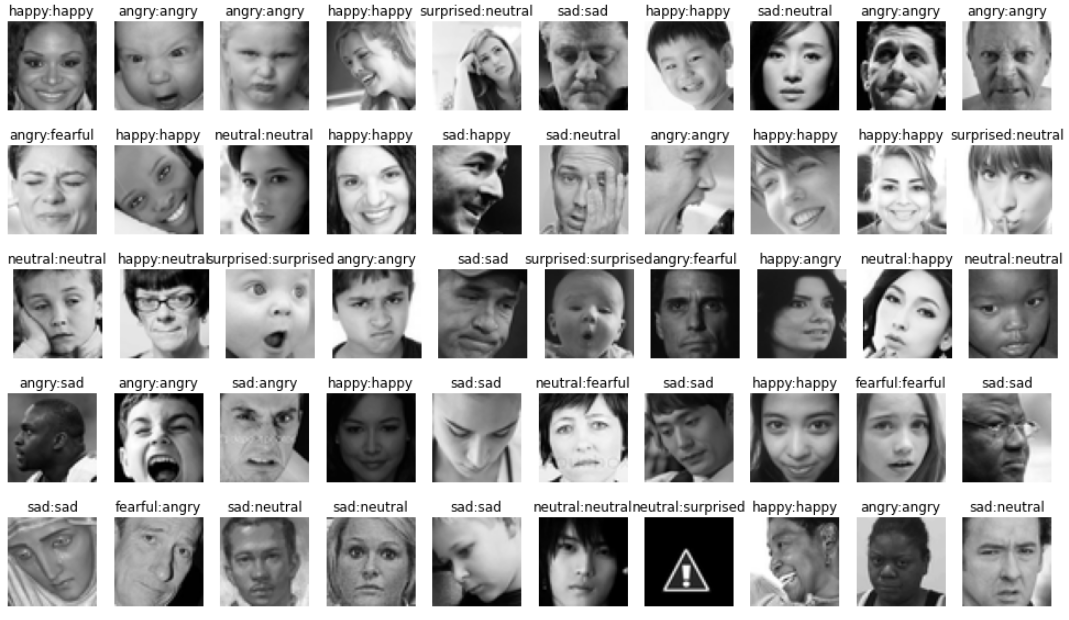

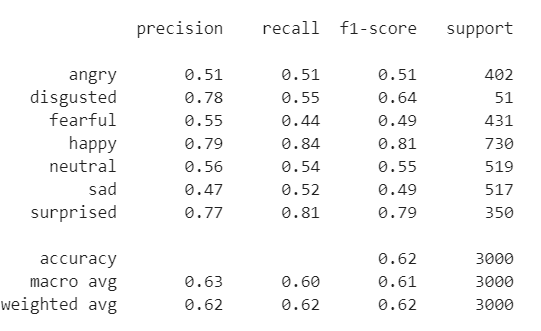

• Very good results classifying happy and surprised
• Angry, disgusted, and fearful show very low performance
• Acc1 = 62.5 %
